Digital Display Heating Mantle LZ-DHM-A104
Digital Display Heating Mantle LZ-DHM-A104
www.labotronics.co.in info@labotronics.co.in

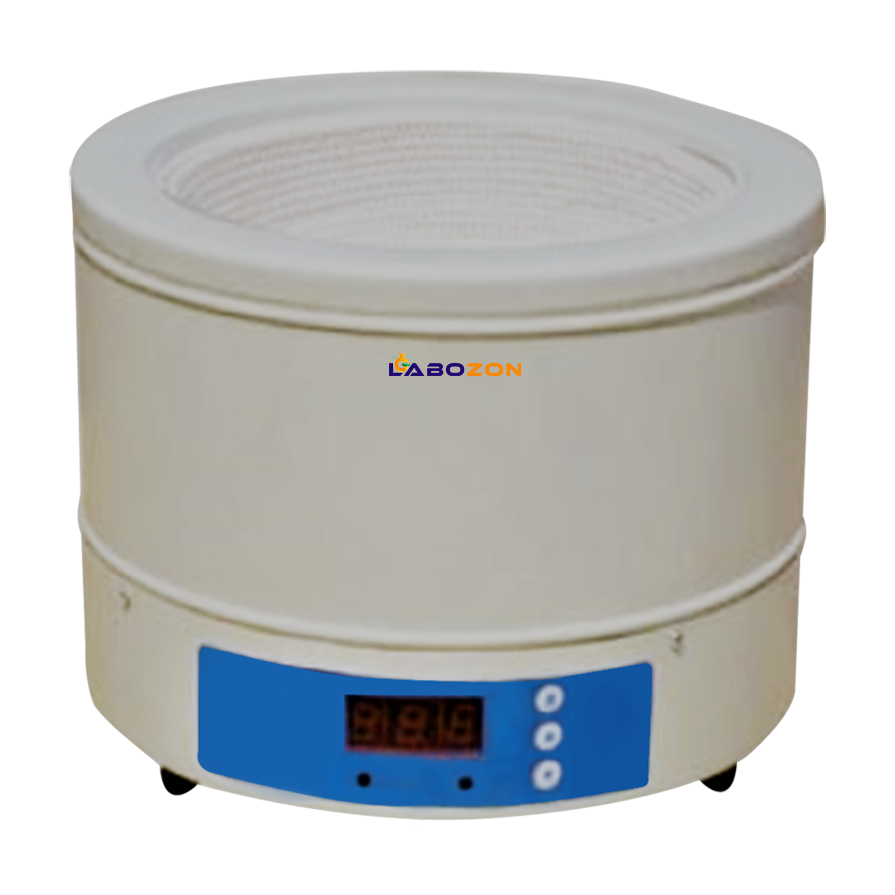

Digital Display Heating Mantle LZ-DHM-A104
Digital Display Heating Mantle LZ-DHM-A104 is a table top device with 1000 ml maximum capacity, offers single channel heating mantle and temperature ranges from RT+20 to 250°C. It offers step less speed adjustment, uniform temperature, fast heating-up, safety and durability. Features anti-corrosion, age-resistant and PID single screen temperature controller. It adopts electronic temperature regulation heating mode.
Features :
- Designed with PID single screen temperature controller
- Offers single digital display heating mantle
- The maximum temperature is up to 450°C
- Equipped with fast heating, temperature uniformity and high precise temperature control
- Adopts Nichrome wire heating element
- Offers PT100 temperature sensor, with adjustable sensor rack and stainless rods
- Equipped by anti-corrosion, age-resistant, durable and safe
- Material used high quality aluminum silicate cotton
- Beautifully shaped, easy to operate and effective
Specifications :
| Capacity | 1000 ml |
|---|---|
| Work model | Continuous |
| Heating mode | Surface heat conduction |
| Surface Max. temperature | 450°C |
| Temperature range | RT+20 to 250°C |
| Heating element | Nichrome wire |
| Outer shell | High quality aluminum silicate cotton |
| Heating Power | 0.35 kW |
| External dimension | 280 × 220 mm |
| Packing dimension | 290 × 290 × 300 mm |
| Power supply | 100 to 120 V or 200 to 240 V |
| Net weight | 5.5 kg |
| Gross weight | 6 kg |
Applications :
Digital Display Heating Mantle is used in petrochemical industries, medicine, and environment protection institutions for liquid heating, chemical synthesis, physical and chemical analysis, biopharmaceuticals etc.
