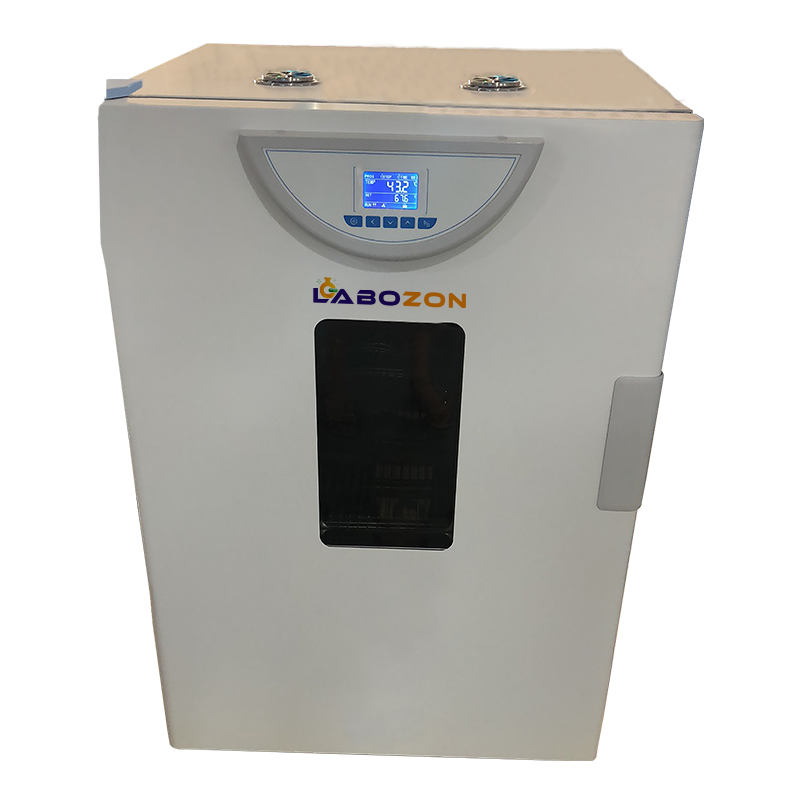

Drying Oven LZ-HDO-A104

Drying oven LZ-HDO-A104 is multi-segments Programmable controller with 400 L chamber capacity. Superior temperature uniformity controlled by PID microprocessor. It provides fast ramping rate and stability during operation. It operational temperature range is RT+10 to 250℃, and designed with large LCD screen to display more data at same time. Equipped with stainless steel chamber, outer shell of steel with plastic coating and dual layer toughened glass observation window. It is suitable for industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction, wax-melting and sterilization.

Features :

•  Designed with PID controller system
•  Material used polished stainless-steel chamber
•  Equipped with 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature
•  Auto-controller of fan speed to prevent damage to the samples
•  Designed with large LCD screen to display more data at same time
•  Self-check function easy to identify problems
•  Offers programmable controller 7 periods 63 steps, 0 to 5999 min for each periods, fan speed 0 to 100% adjustable
•  Dual layer glass door, large viewing window
•  Independent audible and visible temperature-limiting alarm system ensures experiments run safely
•  Over temperature and temperature difference alarms
•  Semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable

Specifications :

Chamber Volume	400 L
Temperature Range	RT+10 to 250℃
Display Resolution	0.1℃
Temperature Stability	±1℃
Temperature Uniformity	±2.5%
Display	LCD display
Shelves	3 pcs
Timing Range	0 to 5999 min
Internal dimension (W×D×H)	1000 × 510 × 800 mm
External dimension (W×D×H)	1140 × 850 × 1080 mm
Power consumption	3000 W
Power supply	220 V, 50 Hz
Net Weight	190 kg
Gross Weight	238 kg

Optional Accessories :

Accessories no.	Name
1	Printer
2	RS-485

Applications :

Drying Oven is used for glassware desiccation, laboratorial sample, food, chemical materials heat denaturalization, heat induration, moisture elimination, biomedical and other instruments sterilization; electronic components torrefaction and aging.
