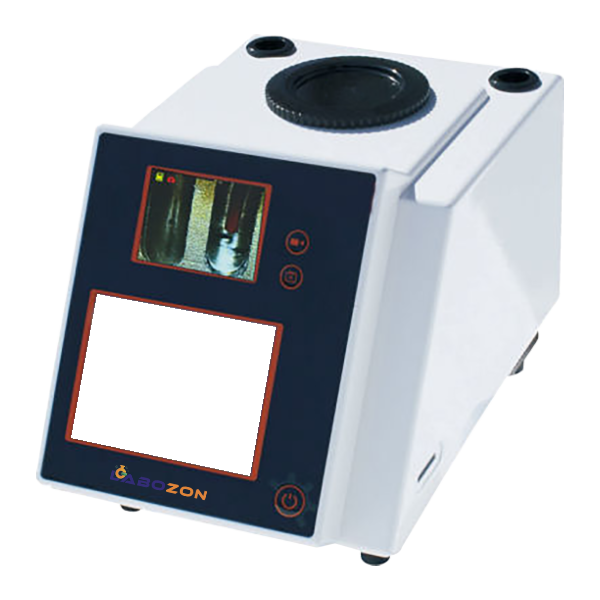

Melting Point Apparatus LZ-MPA-A101
www.labotronics.co.in info@labotronics.co.in
Melting Point Apparatus LZ-MPA-A101 offers desktop design, visual melting point apparatus is of reliable performance. The Temperature control ranges from 6 to 100℃ and offers semi-automatic detection method. Designed with TFT Touch Screen LCD Display. Features Peltier temperature control technology can realize the high precision temperature control, high-definition video can be conveniently and clearly see the whole process of sample melting. Measurement of the melting point of medicines, dye-stuffs and perfumes and other organic crystal substances to determine purity. Measurement method is in conformity with the standard of pharmacopoeia. It measures four samples at the same time and calculate average value of initial and final melting points automatically.
| Temperature control range | 6 to 100℃ |
|---|---|
| Detection method | Semi-automatic |
| Capacity per batch | 2pc./batch |
| Temperature resolution | 0.1℃ |
| Temperature gradients | (0.1 to 10.0)℃/Min |
| Temperature accuracy | ±0.3℃ |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Camera & Video | Camera & Video |
| Video playback | YES |
| Operator account | 8 |
| Result storage | 400 |
| SD card capacity | 8G |
| Display | TFT Touch screen |
| Interface | USB RS232 SD card Enternet |
| Opening capillary size | I.D>1.0 mm, O.D.1.4 mm Double opening |
| Power consumption | 120 W |
| Power supply | 110 to 220 V, 50/60 Hz |
| Dimension | 400 × 280 × 330 mm |
| Weight | 5 kg |
Melting Point Apparatus is used in chemical, pharmaceutical, supervision, food and drug administration, quarantine used across, material research is of great production of medicines, spices, dye and other organic crystal substances essential equipment.
