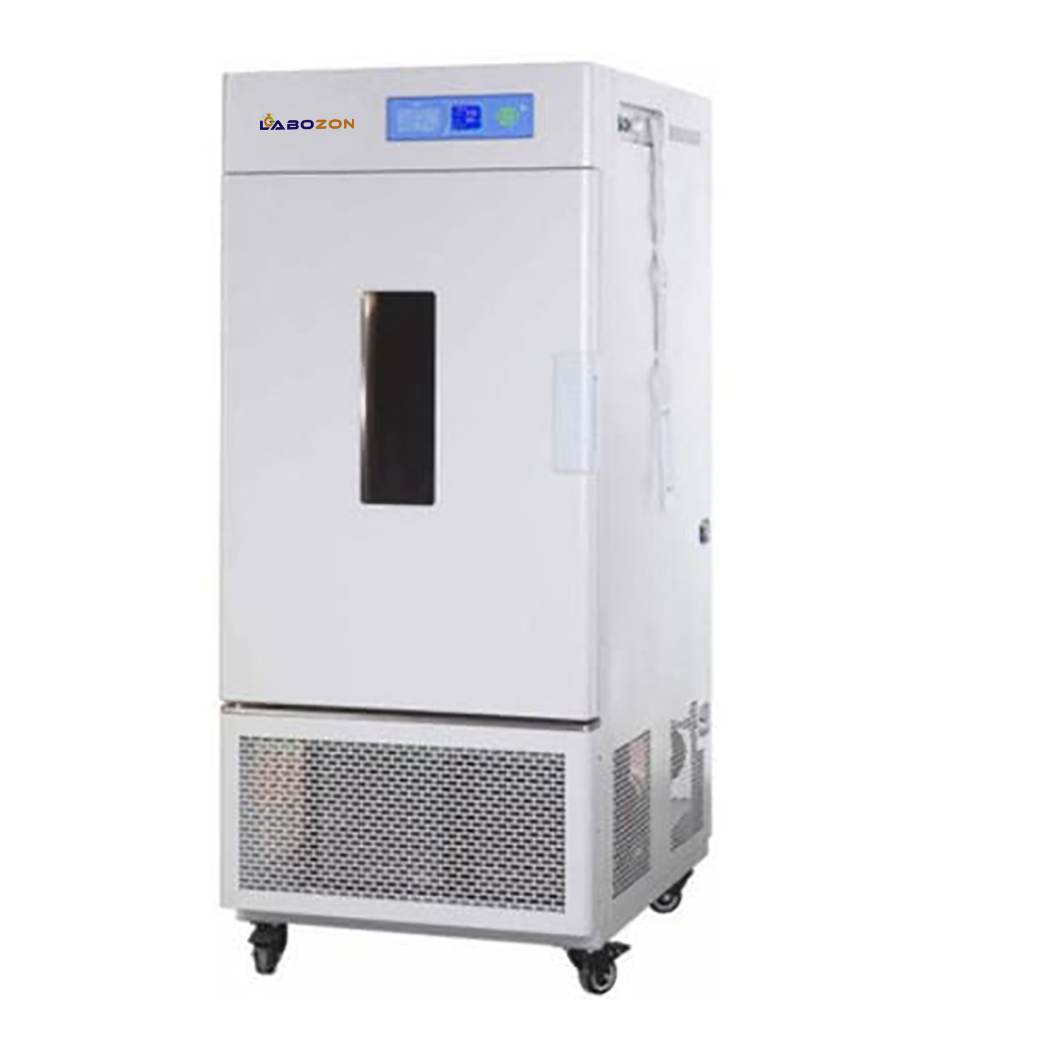

Medical Stability Test Chamber LZ-MSC-A100

Medical Stability Test Chamber LZ-MSC-A100 is designed with 150 L capacity volume. It offers 35 to 95 % RH humidity range and temperature control ranges from 0 to 65℃ without illumination and 10 to 50℃ with illumination). Designed with microprocessor control, stainless steel chamber, and semicircular arcs at corners for easy cleaning. It features a precise system of temperature and humidity control, which provide various necessary environmental simulative conditions for industrial researches and biotechnology tests. Designed with large LCD screen to display more data at same time. The good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.

Features :
  •  Designed with microprocessor control, stainless steel chamber, semicircular arcs at corners for easy cleaning
  •  Offers 100 groups with 1000 periods 999 circulations, max timing for each period is 99 hours 59 minute
  •  Over temperature and temperature difference alarms
  •  Imported humidity sensor which can be used in high humidity environment
  •  Equipped with R134a refrigerant, 2 imported compressors and fan motor
  •  Designed with large LCD screen to display more data at same time
  •  Balance temperature and humidity adjusting system
  •  Offers 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement
  •  Adopts even air circulating system
  •  Auto lock after setting data
  •  Available to program on computer via RS-484 or RS-232
  •  4 movable castors for ease moving, and with brakes function
Specifications :
Chamber Volume 150 L
Temperature control range 0 to 65℃ without illumination, 10 to 50℃ with illumination)
Temperature Stability ±0.5℃
Temperature Uniformity ±2℃
Humidity Range 35 to 95 % RH
Humidity Stability ±3 % RH
Illumination 0 to 6000 LX adjustable
Illumination difference ≤± 500 LX
Timing Range 1 to 99 hours each period
Humidity and temp adjusting Balance temperature and humidity adjusting
Cooling system/cooling mode Two sets of imported compressor work rotationally
Controller Programmable ( LCD screen)
Sensor Temperature Pt 100, Humidity: capacitance sensor
Ambient Temperature RT+5 to 30℃
Shelves 3 pcs
Safety Device Compressor overheating and overpressure protection, Fan overheating protection Over temperature protection, Overload protection, Water protections
Internal Dimension 550 × 405 × 670 mm
External dimension 690 × 805 × 1530 mm
Power Consumption 2250 W
Power supply AC 220V, 50 Hz
Net weight 186 kg
Gross weight 230 kg
Applications :

Medical Stability Test Chamber is used to create a drug for a long time to failure evaluation of stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity and strong light test, is the best choice for pharmaceutical companies and drug stability test program.
