Shaking Incubator LZ-SHI-A101

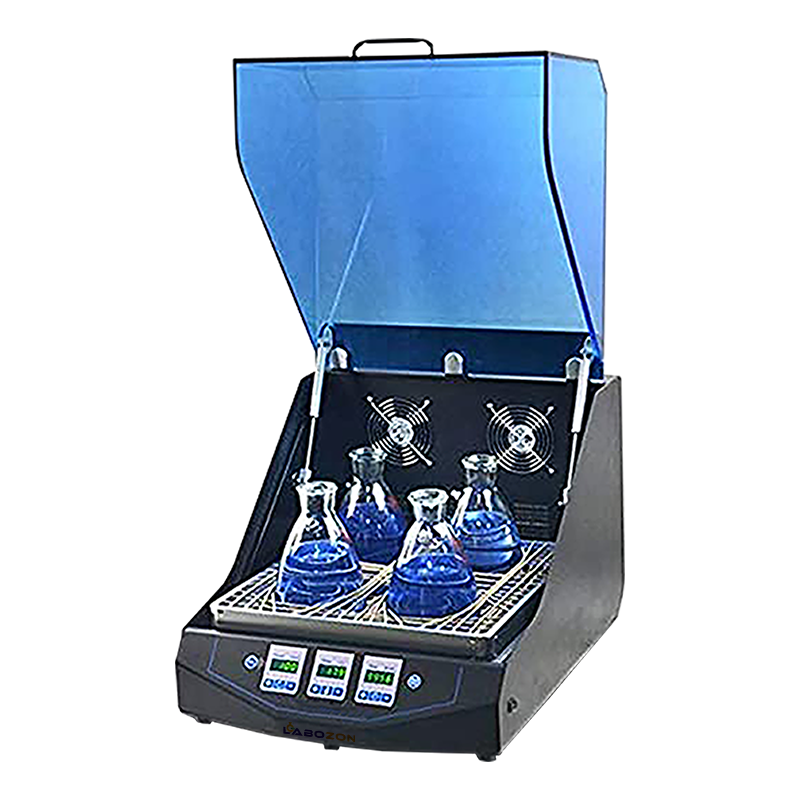

Shaking Incubator LZ-SHI-A101 is type of temperature controlled biochemical device combining incubation and shaking function. Designed with microprocessor controlled shaking incubation unit with timing function. The shaking speed ranges from 50 to 300 rpm and offers temperature range from RT +5 to 60°C. It offers standard platform with Mesh Springs configuration. Equipped with circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize. Offers brushless DC motor and maintenance-free. Its smooth running start/stop system helps in preventing liquid spillage. Its auto controller fan speed prevents damage to the sample. It can dynamically and statically cultivate microbial cell and all kinds of strains and are useful in research & development across institutes.

Features :
  •  Designed with PID control speed technology
  •  Offers micro-processor controls temperature and shaking speed
  •  Built-in timing function, Integrate incubator and shaker, save the lab space
  •  Compact design, good temperature uniformity and low noise
  •  Equipped with cover switch, when the cover is open, air circulation, heating and shaking will automatically stop. No temperature overshoot problem
  •  Unique speed control circuit to ensure shaker smoothly start to avoid liquid spilling
  •  Circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize
  •  Human friendly touch-tone operation interface. Cover can be widely angle opened, convenient to watch and pick sample
  •  Independent temperature alarm system and heating is cut off automatically when temperature is over the limited value
  •  Designed with sound alarms after program finishes
  •  Brushless DC motor, long life and maintenance-free
  •  Offers Standard Platform with Mesh Springs Configuration
Specifications :
Speed range 50 to 300 rpm
Shaking orbit 20 mm (circle)
Temperature Control Range RT +5 to 60°C
Temperature Setting Range 5 to 60°C
Temperature Stability ±0.3°C
Temperature Display accuracy 0.1°C
Timing Range 1 min to 99 h 59 min
Standard Platform Configuration Mesh Springs Platform Dimension (W×D×H): 410×420×65 mm
Optional Platform Configuration NA
Power Supply AC 220 V/AC 110V, 50/60 Hz
Power 600 W
Fuse 250 V, 5A/10A, Φ5×20
Dimension (W×D×H) 514 × 660 × 430 mm
Net Weight 44.2 kg
Applications :

Shaking Incubator is used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which requires higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.
