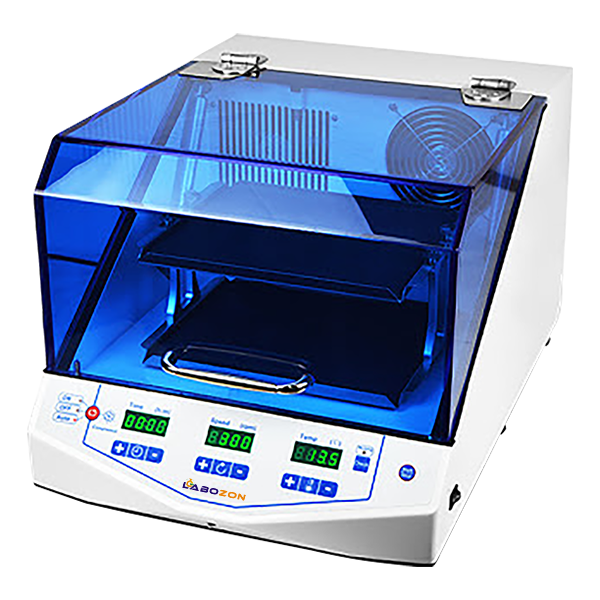

Shaking Incubator LZ-SHI-A103

Shaking Incubator LZ-SHI-A103 is type of temperature controlled biochemical device combining incubation and shaking function. Designed with microprocessor controlled shaking incubation unit with timing function. The shaking speed ranges from 50 to 300 rpm and offers temperature range from RT +5 to 60°C. Equipped with circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize. Offers brushless DC motor and maintenance-free. Its smooth running start/stop system helps in preventing liquid spillage. Its auto controller fan speed prevents damage to the sample. It can dynamically and statically cultivate microbial cell and all kinds of strains and are useful in research & development across institutes.

Features :
  •  Designed with PID control speed technology
  •  Offers micro-processor controls temperature and shaking speed
  •  Built-in timing function, Integrate incubator and shaker, save the lab space
  •  Compact design, good temperature uniformity and low noise
  •  Equipped with cover switch, when the cover is open, air circulation, heating and shaking will automatically stop. No temperature overshoot problem
  •  Unique speed control circuit to ensure shaker smoothly start to avoid liquid spilling
  •  Circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize
  •  Human friendly touch-tone operation interface. Cover can be widely angle opened, convenient to watch and pick sample
  •  Independent temperature alarm system and heating is cut off automatically when temperature is over the limited value
  •  Designed with sound alarms after program finishes
  •  Brushless DC motor, long life and maintenance-free
  •  Offers Optional Platform with Clamps, Springs, Bars Configuration
Specifications :
Speed range 50 to 300 rpm
Shaking orbit 2 mm (circle)
Temperature Control Range 4 to 60°C @RT. ≤25°C
Temperature Setting Range 4 to 60°C
Temperature Stability ±0.3°C
Temperature Display accuracy 0.1°C
Timing Range 1 min to 99 h 59 min
Standard Platform Configuration NA
Optional Platform Configuration
Platform design: Clamps for 6 flasks, each flask of 250 ml capacity
Platform design: Clamps for 12 flasks, each flask of 100 ml capacity
Platform design: Universal Platform With Springs
Platform design: Universal Platform With Adjustable Bars
Platform design: Flat Platform With Non-Slip Rubber
Power Supply AC 220 V/AC 110V, 50/60 Hz
Power 600 W
Fuse 250 V, 5A/10A, Φ5×20
Dimension (W×D×H) 385 × 560 × 320 mm
Net Weight 25.8 kg
Applications :

Shaking Incubator is used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which requires higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.
