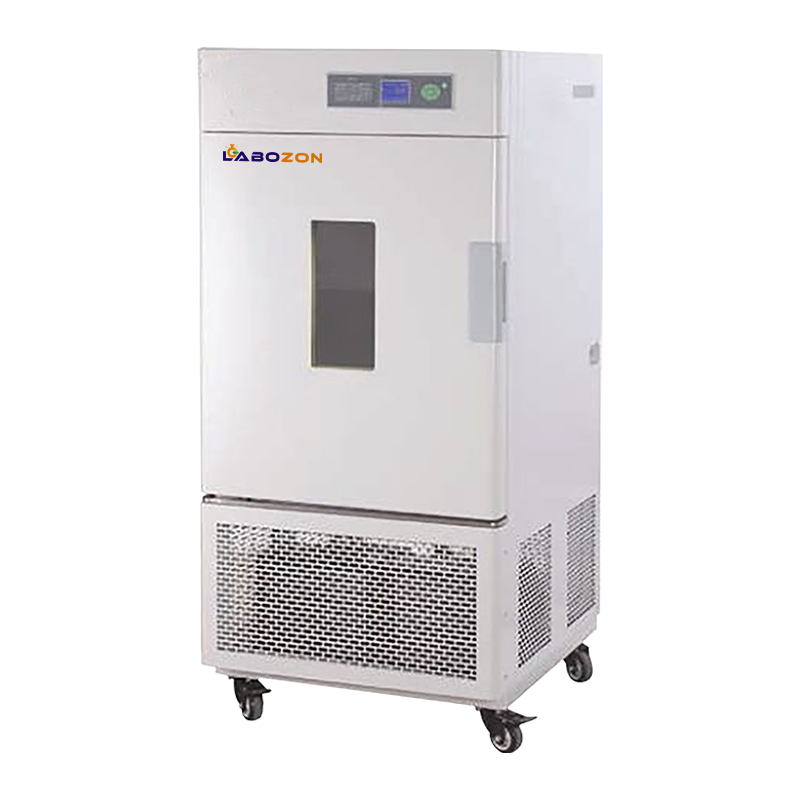

Temperature and Humidity Test Chamber LZ-THC-A100

Temperature and Humidity Test Chamber LZ-THC-A100 is designed with 80 L capacity volume. It offers 40 to 85 % RH humidity range and temperature ranges from 5 to 80°C. Designed with PID controller system to control main unit, temperature system and display. It features a precise system of temperature and humidity control, which provide various necessary environmental simulative conditions for industrial researches and biotechnology tests. The good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.

Features :

•  Designed with PID controller system to control main unit, temperature system and Display
•  Material used polished stainless-steel chamber, semicircular arcs at corners for easy cleaning
•  The space between shelves in the chamber is adjustable
•  It adopts Imported compressor
•  Equipped with independent temperature-limiting alarm system ensures experiments run safely
•  Offers 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement
•  4 movable castors for ease moving, and with brakes function

Specifications :

Capacity	80 L
Temperature Range	5 to 80°C
Display Resolution	0.1℃
Temperature Stability	High ±0.5℃ Low ±1℃
Temperature Uniformity	±2℃
Humidity Range	40 to 85 %
Humidity Accuracy	±3 % RH
Ambient Temperature	+5 to 35℃
Shelves	2 pcs
Internal Dimension	400 × 400 × 500 mm
External Dimension	550 × 790 × 1080 mm
Power Consumption	2000 W
Power supply	220 V, 50 Hz
Net weight	122 kg
Gross weight	165 kg

Optional Accessories :

Accessories no.	Name
1	Printer
2	Independent temperature-limiting Alarm system

Applications :

Test Chamber is used in food industry also basic used in advanced research, pharmaceutical industries, chemical industries, and including testing products relating to aerospace, electronics, automobile and environmental stress screening etc.
