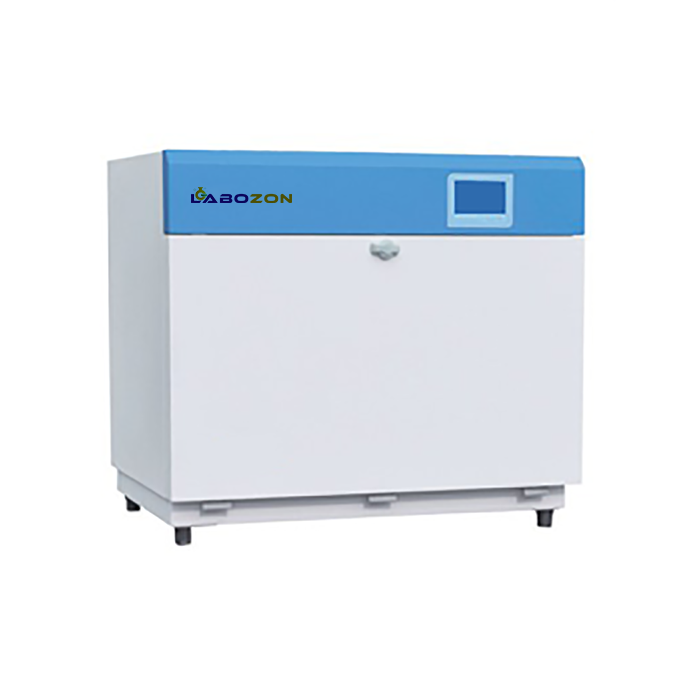

UV Test Chamber LZ-UTC-A100

UV Test Chamber LZ-UTC-A100 is temperature and humidity controller. The Temperature Range for light cycle is 45℃ to 80℃ and offers temperature range for condensation cycle 40℃ to 60℃. Adopts 8 pcs standard sample test shelf. Designed with 4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation. It provide 3 spray headers which can meet the uniformity of rainfall for flat sample rack. Material used advanced stainless steel material and overall appearance is generous. Equipped with 4 pieces of 20 W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours. Build-in 4 pieces of 70 x 150 flat sample racks, the users can test for three-dimensional or flat samples.

Features :
  •  Designed with 4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation
  •  Equipped with 4 pieces of 20 W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours
  •  Offers BPT sensor, cabinet temperature and rain cycle etc
  •  It can be used for visually setting and displaying
  •  It provide 3 spray headers which can meet the uniformity of rainfall for flat sample rack
  •  Radiation intensity adjustment with optional RM-20 irradiance meter which by manual adjustment
  •  Adopts blackboard temperature self-control by test set value, to meet user for lighting, condensation, spray, temperature and other aging test chamber
  •  Build-in 4 pieces of 70 × 150 flat sample racks, the users can test for three dimensional or flat samples
Specifications :
Temperature Range for Light cycle 45℃ to 80℃
Temperature Range for Condensation cycle 40℃ to 60℃
Light source type UVA
Power 20 W/pc, total 4 pcs
Wavelength range Standard with UVA@ 340 nm
Irradiance Handle
Calibration function No
Spraying function 3-hole spraying
Sample shelf size 8 pcs standard sample test shelf
Center distance between sample and lamp 150 mm to 280 mm
Cycle mode Dark, light, spray, condensate set multi-cycle automatic control
Light control Handle
Dimension 770 × 565 × 690 mm
Power consumption 2000 W
Power supply 220 V, 50 Hz
Net weight 98 kg
Gross weight 125 kg
Applications :

UV Test Chamber is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, leather textile test, treatment of mandatory ventilation, etc.
