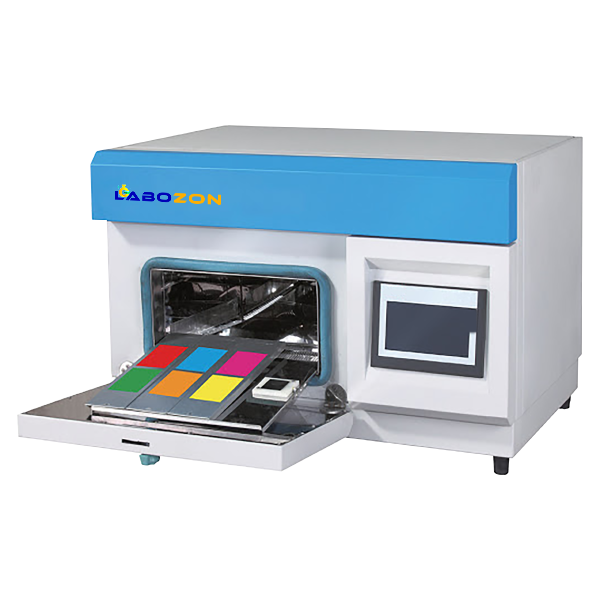

Xenon Test Chamber LZ-XTC-A101
Xenon Test Chamber LZ-XTC-A101 is touch screen microprocessor controller with timing function. The xenon arc lamp reoccurs the full solar spectrum, which include ultraviolet, visible light and red light. It adopts high quality lamp use life up to 1200 to 1500 hours. It offers the pure water spraying system simulates the wet erosion phenomenon, spraying could operation dark or light cycle. Designed with 9.7 inch touch screen, easy operate and The Irradiation, blackboard temperature, rain cycle and so on could be easily set and display. It can accelerate the aging experiment to achieve the effect of rapid aging.
Features :
- Designed with 9.7 inch touch screen, easy to understand and operate
- The Irradiation, blackboard temperature, rain cycle and so on could be easily set and display
- Offers the pure water spraying system simulates the wet erosion phenomenon, spraying could operation dark or light cycle
- Equipped with high quality lamp and the use life up to 1200 to 1500 hours
- It can accelerate the aging experiment to achieve the effect of rapid aging
- Adopts over-temperature protection and over-load protection
- Material used polished stainless-steel chamber makes the exposed area large enough and uniform
- Enhanced the light irradiance and shorten the exposure time of sample
- Designed with real time monitor and control the light intensity to ensure the repeatability of the test results
- The control point of irradiance could choose 340 nm, 420 nm or 300 to 400 nm
- The blackboard temperature sensor monitor the exposure temperature of sample accurately
- It provides referring and setting related industry standards
Specifications :
| Control system | Siemens PLC |
|---|---|
| Program function | 4 groups standard program built-in and 2 groups program can be se |
| Sample area | 930 cm2 |
| Sample surface temperature monitoring | Blackboard temperature automatic control by sensor |
| Spraying system | Yes |
| Irradiance control | 340 nm, 420 nm or 300 nm-400 nm Wavelength automatic control (standard with@340 nm High-precision sensors) |
| Lamp cooling method | Air cooling |
| Sample shelf type | Flat plate type |
| Lamp | Standard lamp tube, or Atlas lamp tube(optional) |
| Working chamber Dimension | 320 × 320 × 320 mm |
| External Dimension | 890 × 580 × 590 mm |
| Power consumption | 3500 W |
| Power supply | 220 V, 50 Hz |
| Net weight | 93 kg |
| Gross weight | 125 kg |
Applications :
Xenon Test Chamber is used in arc lamp to simulate full solar spectrum and reproduce the aging light environment in different condition, it provides the corresponding environment simulation and the accelerate test for scientific research, product development and quality control.
